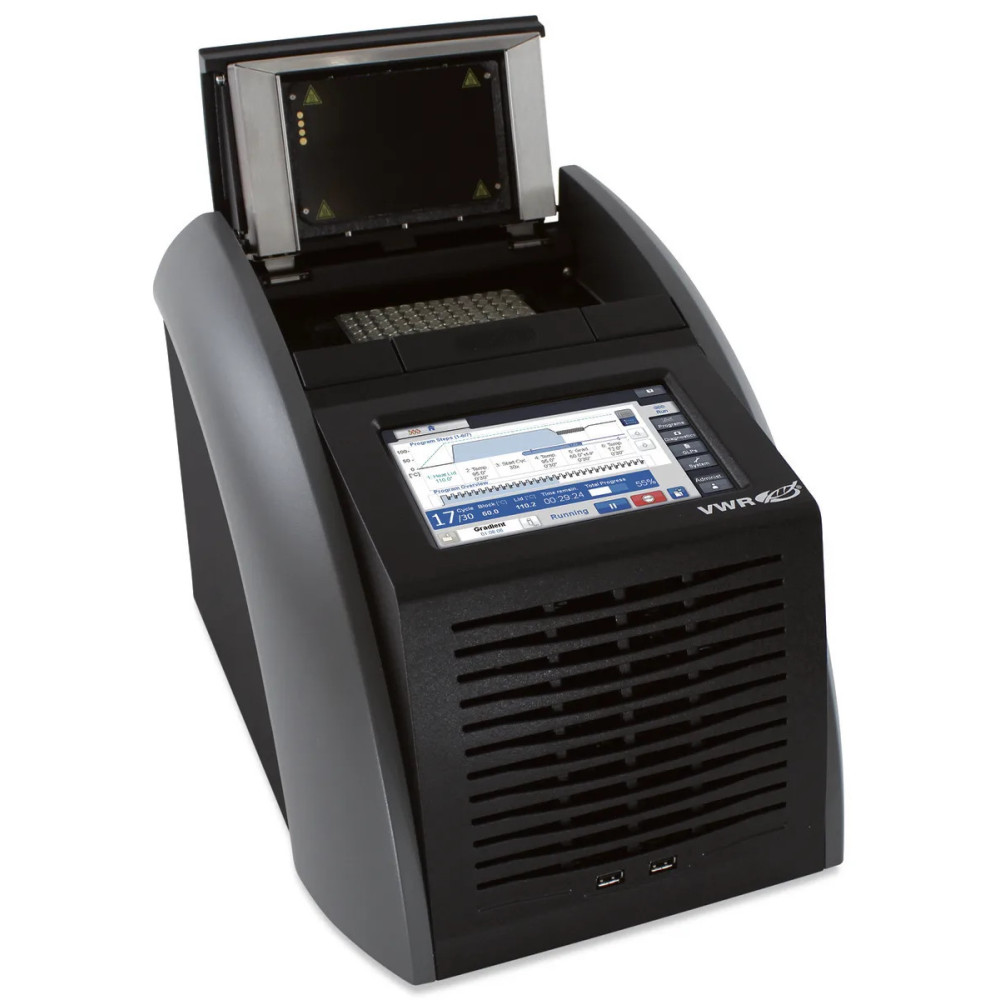

VWR®, Thermal Cyclers UNO96 Gradient

Description:
The VWR® Thermal Cycler UNO96 Gradient is a professional gradient PCR thermal cycler designed for precise PCR optimization and reliable DNA amplification. The instrument features a universal 96-well gradient block with a standard lid compatible with 96 × 0.2 ml PCR tubes, 96-well PCR plates, or 48 × 0.5 ml tubes with flat caps.

The gradient technology allows different temperature conditions to be tested within a single experiment, simplifying PCR optimization and protocol development. The UNO96 Gradient uses 16 individually controlled Peltier elements, enabling the definition of multiple temperature points simultaneously and providing high flexibility during PCR optimization.

Features:

• gradient PCR thermal cycler with universal 96-well block
• standard lid compatible with 96 × 0.2 ml PCR tubes, PCR plates and 48 × 0.5 ml flat-cap tubes
• 16 individually controlled Peltier elements
• multiple temperature settings within one experiment
• PCR optimization using temperature gradients
• temperature range +4 to 105 °C
• temperature accuracy ±0.1 °C
• block homogeneity ±0.2 °C at 72 °C
• heating and cooling rates up to 5 °C/s
• touch-sensitive TFT display (800 × 480 pixels, 16:9, 65,536 colours)
• remote control via PCR Cycler Master Software
• emulation mode for easy PCR protocol transfer
• internal memory for up to 500,000 PCR protocols
• 4× USB and 1× Ethernet interfaces
• compatible with Windows and Linux systems
• manufactured in Germany according to ISO 9001
• calibrated and maintained according to NIST standards

Applications:

• PCR optimization
• annealing temperature optimization
• standard PCR
• DNA amplification
• molecular biology
• genetic analysis
• research laboratories
