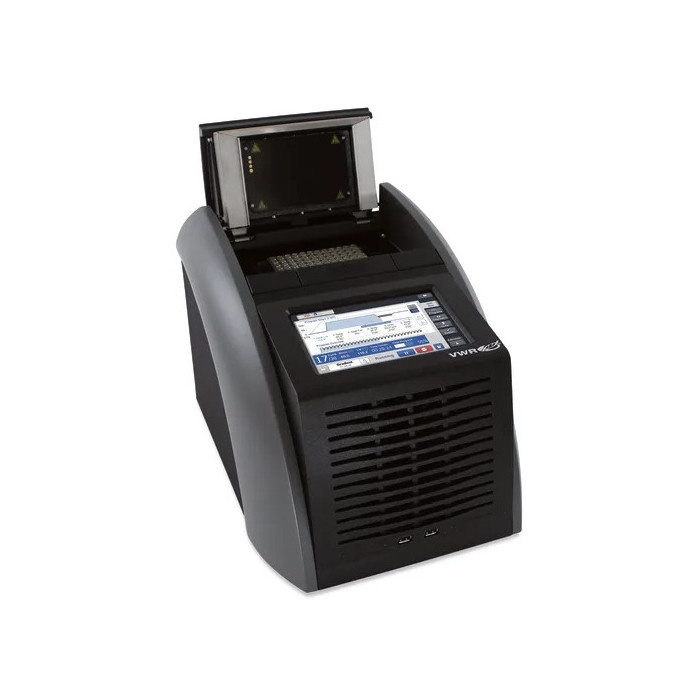

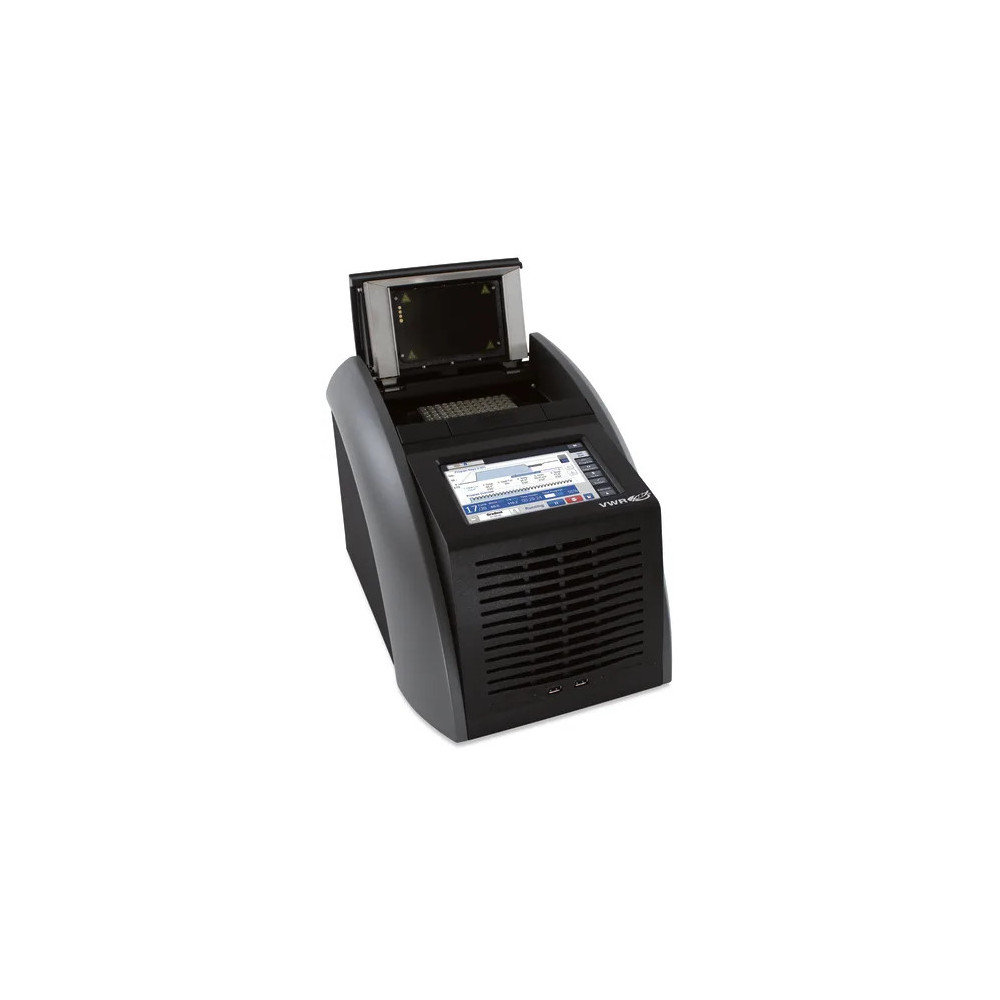

VWR®, Thermal Cyclers UNO384

Description:
The VWR® Thermal Cycler UNO384 is a professional PCR thermal cycler equipped with a 384-well block and high-pressure heated lid, designed for high-throughput PCR applications. The instrument enables processing of 384-well PCR plates while providing high accuracy, reproducibility, and efficiency for molecular biology workflows.

The VWR® Thermal Cyclers family uses powerful Peltier elements with Long Life Technology, enabling rapid temperature changes of up to 5 °C/s. The specially designed heated lid automatically adjusts its height to different tube and plate sizes.

The UNO384 uses the same software platform as other UNO models, providing intuitive operation, PCR protocol transfer through emulation mode, and extensive internal memory capacity.

Features:

• PCR thermal cycler with 384-well block
• high-pressure heated lid for 384-well PCR plates
• compatible with 384-well PCR plates
• powerful Peltier elements with Long Life Technology
• heating and cooling rates up to 5 °C/s
• temperature control accuracy ±0.1 °C
• block homogeneity ±0.2 °C at 72 °C
• temperature range +4 to 105 °C
• lid temperature range +40 to 120 °C
• touch-sensitive TFT display (800 × 480 pixels, 16:9, 65,536 colours)
• remote control via PCR Cycler Master Software
• emulation mode for easy PCR protocol transfer
• internal memory for up to 500,000 typical PCR protocols
• unlimited programs via network PC or USB memory
• 4× USB and 1× Ethernet interfaces
• compatible with Windows and Linux systems
• manufactured in Germany according to ISO 9001
• calibrated and maintained according to NIST standards

Applications:

• high-throughput PCR workflows
• DNA amplification
• molecular biology
• genetic analysis
• research laboratories
• applications requiring large sample throughput
