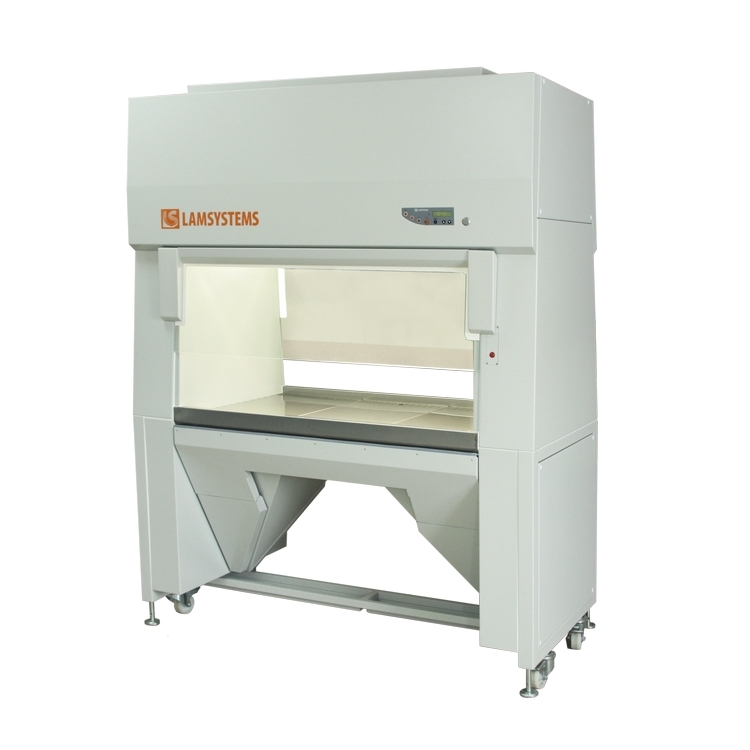

Microbiological safety cabinet class II VIS-A-VIS is designed to work with lab animals.
The design of VIS-A-VIS cabinet allows two operators working opposite one another at the same time.
It provides product, operator and environment protection when working with agents of biosafety levels 1, 2 and 3.
MAIN FEATURES
It is equipped with a system of monitoring the operating modes; optical sensors of the front glasses, the UV-unit and the safety closure position; a control panel with LCD touch screen, where operation information of the cabinet is displayed. The audio-visible alarm system is activated upon failure of the safety conditions.

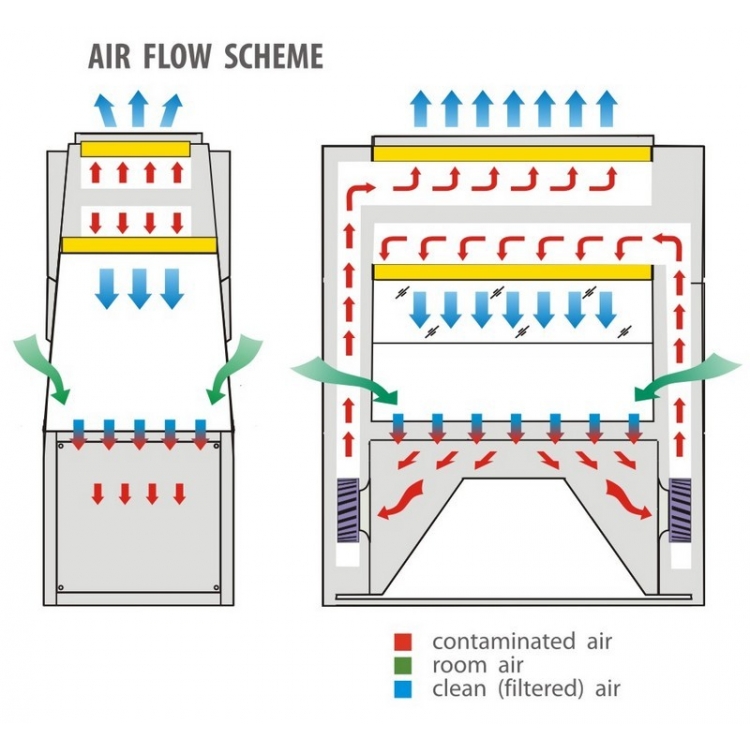

Downward laminar air flow prevents the materials cross contamination in the working zone. The animals’ hair catcher is installed under the table top.
A unique pull out UV-unit is included into the basic configuration.
The cabinet is designed for operation in standing or seating position.
Support stand for operators in standing position (height of the working surface is 1,008 mm) .
MAIN CHARACTERISTICS
|
Air cleanliness class in the working chamber of the cabinet in terms of concentration of airborne particles (aerosols) according to ISO 14644-1-2002, not less than |
|
|
Cabinet class according to ЕN 12469:2010, NSF/ANSI 49 |
II |
|
Cabinet type according to NSF/ANSI 49 |
A2 |
|
Class of the installed НЕРА-filters according to EN 1822-1:2010 |
Н14 |
|
Average velocity of the inflow though the work opening, m/s |
0,45±0,03 |
|
Average downflow velocity in the working chamber, m/s |
0,33±0,01 |
|
Illuminance level in the working zone, lux, not less than |
2000 |
|
Air recirculation rate in the cabinet, % |
≈50 |
MAIN PARAMETERS AND DIMENSIONS
|
Dimensions of the cabinet with the stand in assembly (WxDxH), mm |
1506х750х1965 |
|
Dimensions of the working chamber (WxDxH), mm |
1110x665x687 |
|
Mass of the cabinet, kg, not more than |
314 |
|
Maximum power consumption (without the built-in outlets load), W, not more than |
360 |
|
Total acceptable load on the built-in outlets, W, not more than |
1000 |
|
Air volume supplied to the working chamber, m3/h |
915 |
ADDITIONAL OPTIONS
Gas-tap
Vacuum-tap
Electrical sockets
Cabinet’s stand for operating the cabinet while standing
LED lighting

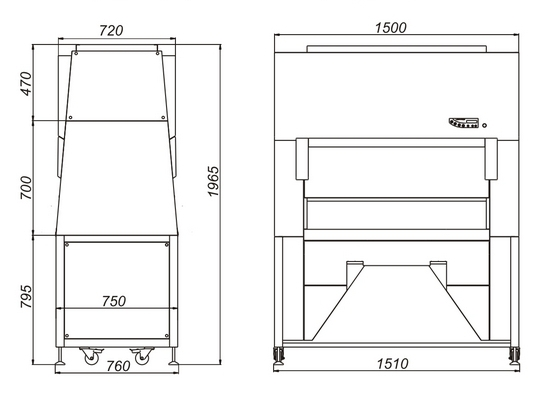

DIMENSION DRAWING
